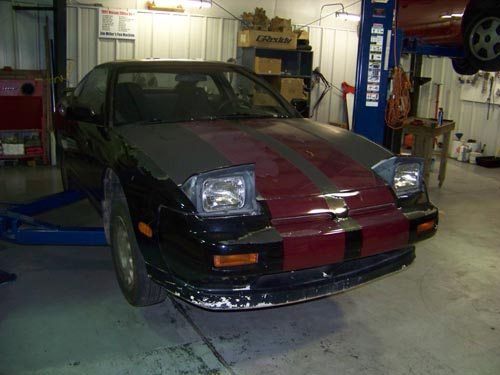

Another S13 build at the JGY shop

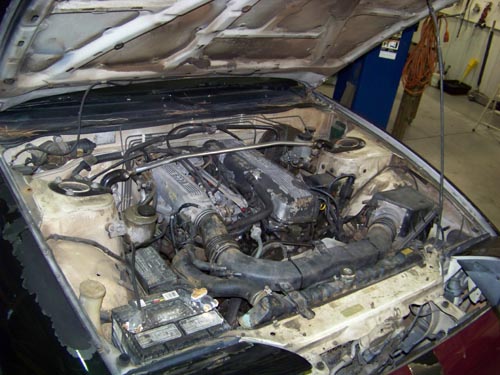

Removing the factory single slammer for a more potent SR20 powerplant

Ferrea dual springs and retainers on this head build

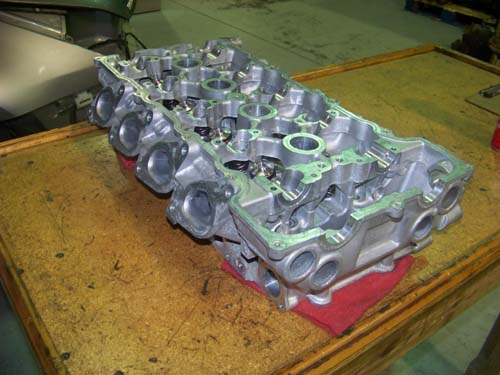

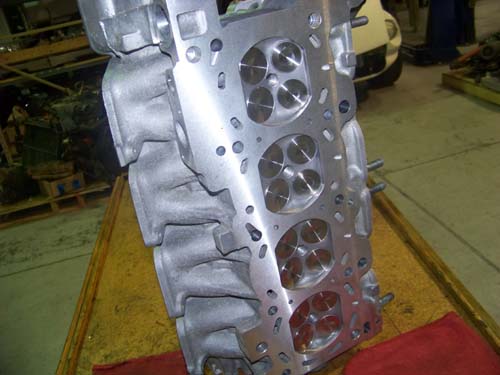

Decked head surface to insure a perfect seal

All clean

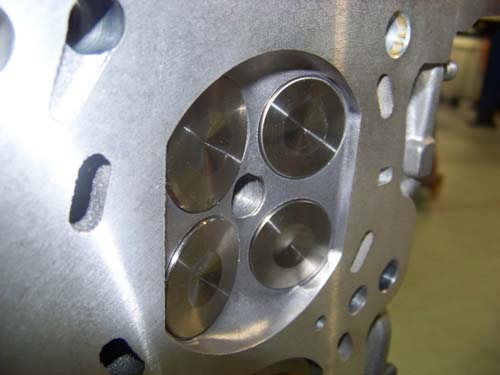

BC .5mm over intake and exhaust valves to help flow better

Ryan decided to trade in the other S13 for our S15 fronted Hatch

This car is not only going to be fast but have style too

Out with the old suspension arms

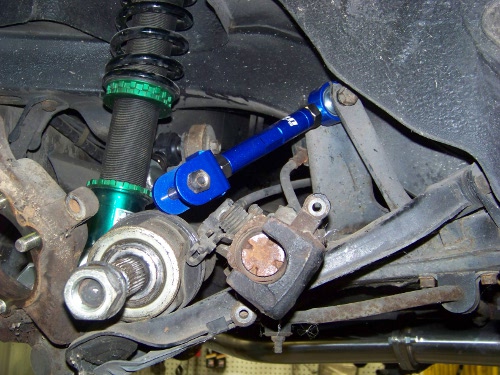

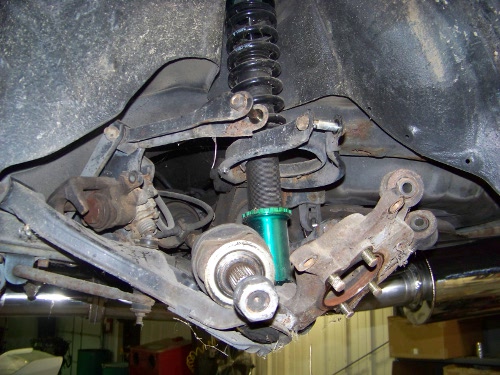

and now in with the new

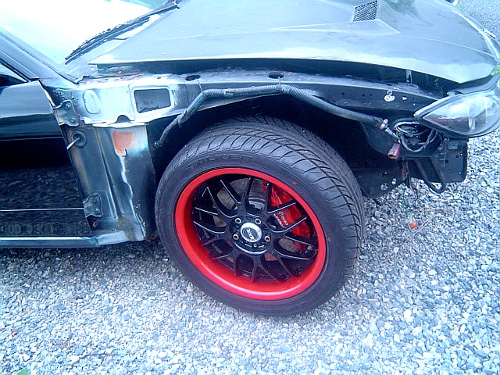

Ryan's Evo brakes are on his S13.5

Outside putting the vibe out

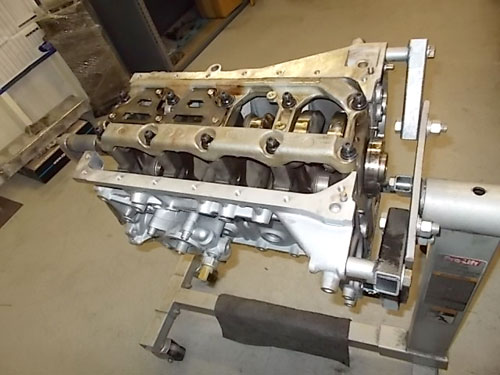

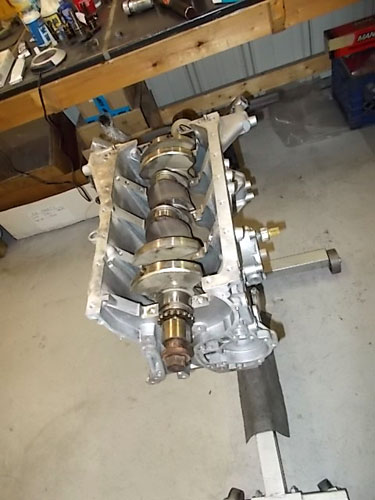

Crank shaft in.

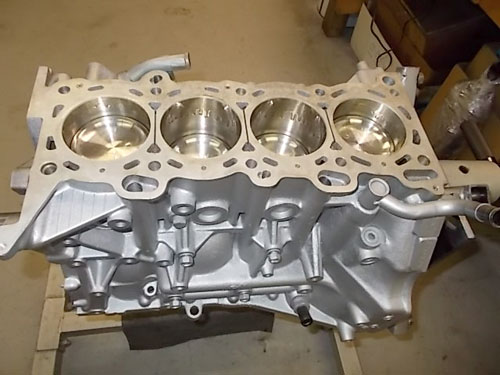

CP Pistons installed

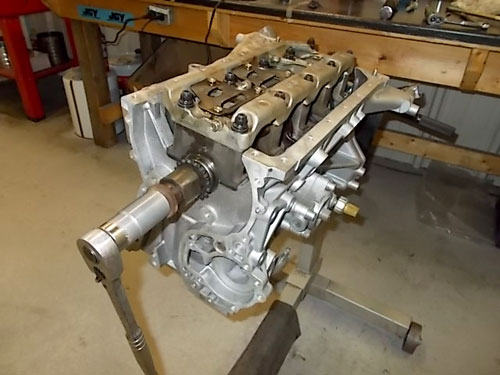

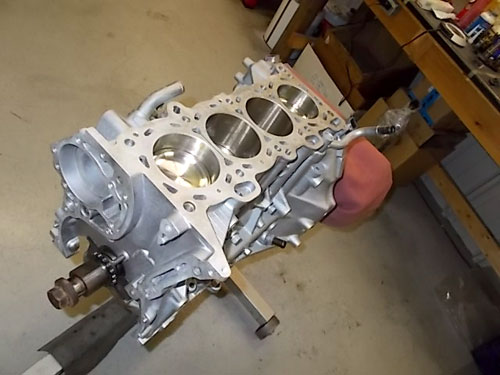

Bottom end together

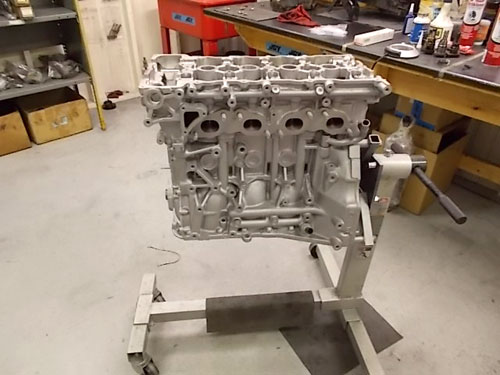

Head on and Cometic gasket in between

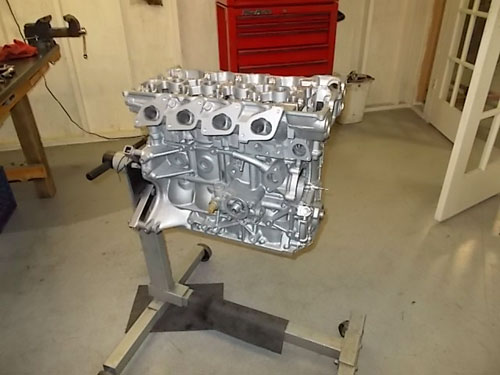

Nice

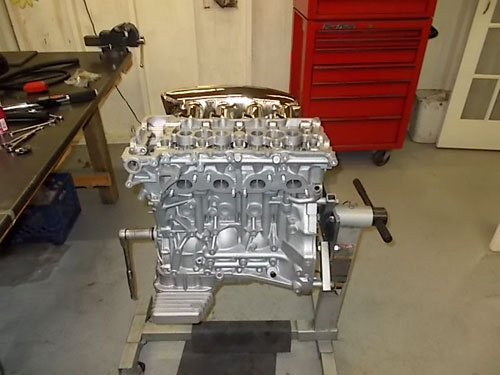

Head installed

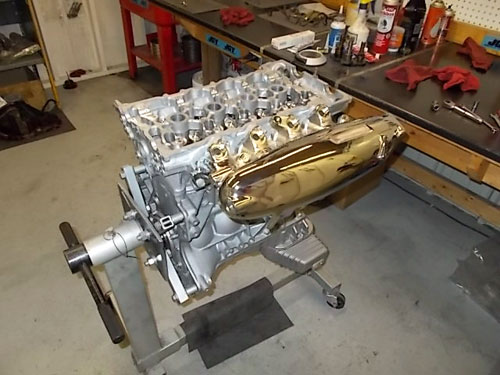

Chrome intake manifold

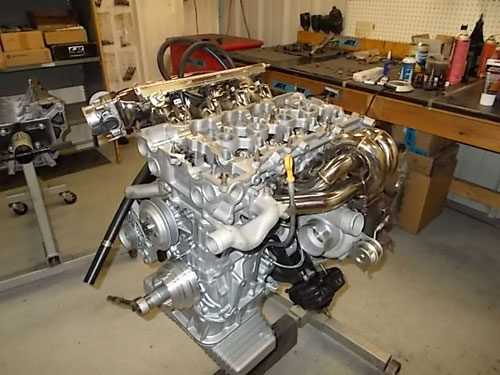

JGY crank pulley

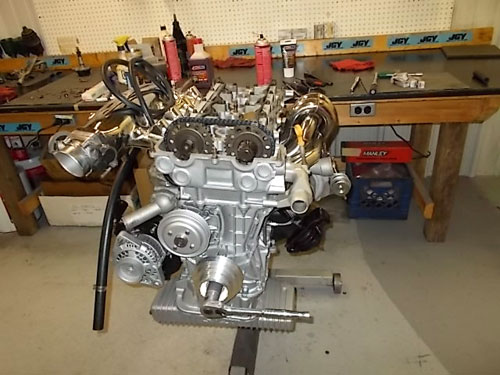

HKS cams and rocker arm stoppers

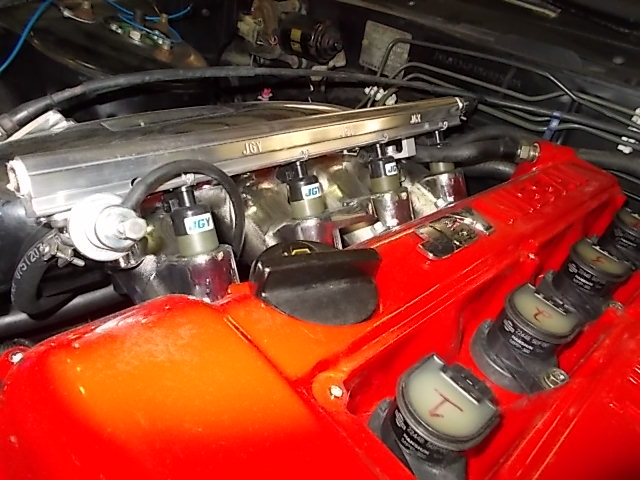

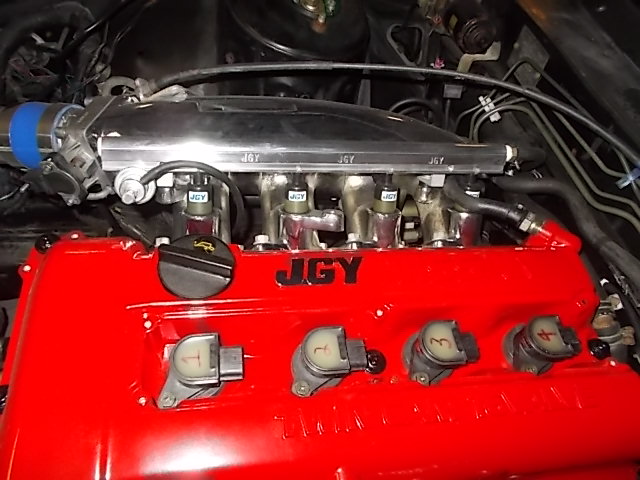

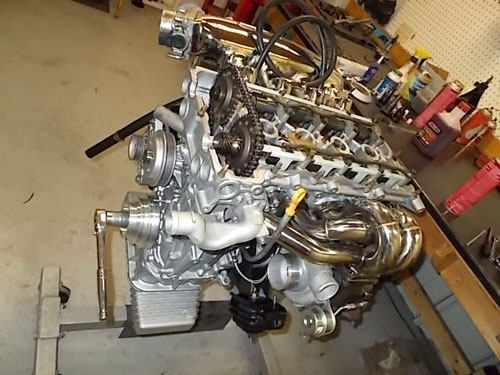

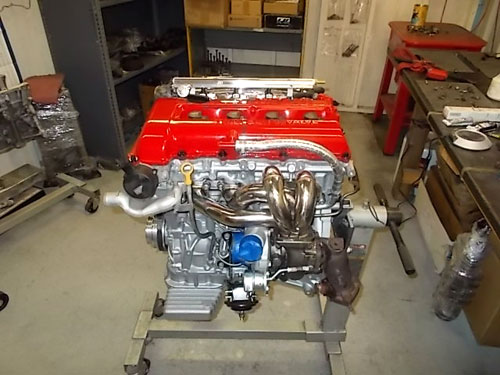

JGY fuel rail and GT2871R

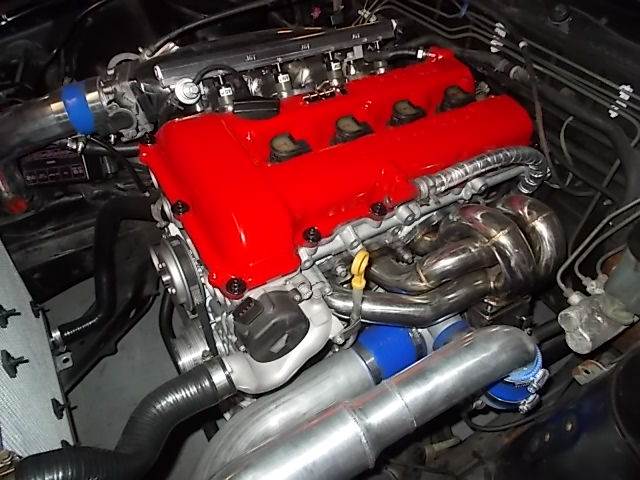

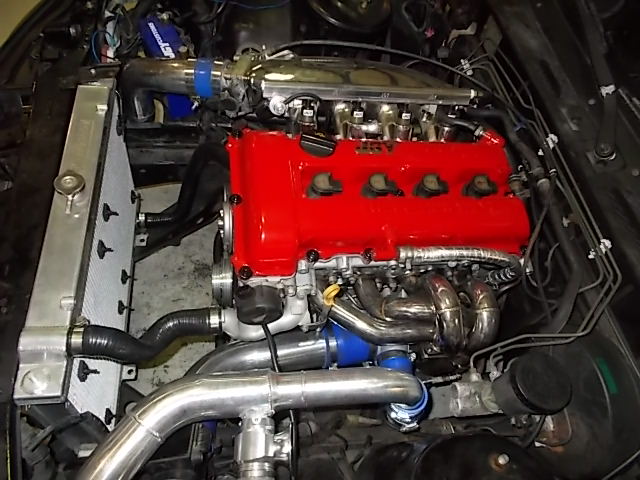

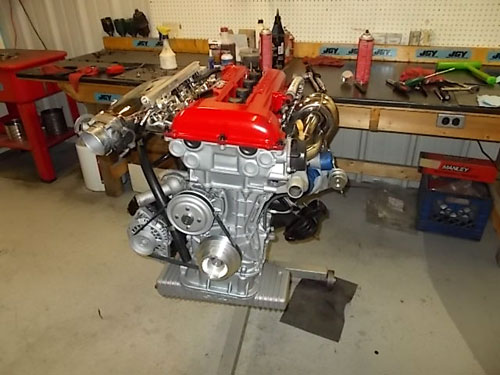

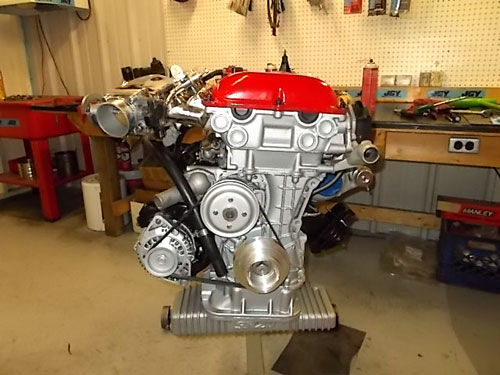

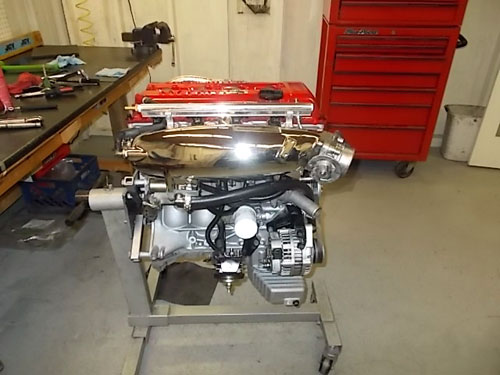

The motor's finished

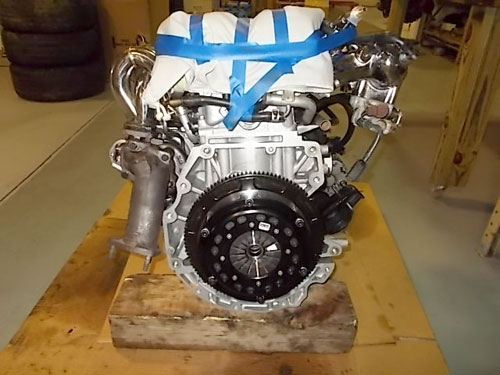

Competition Clutch Twin Plate Clutch

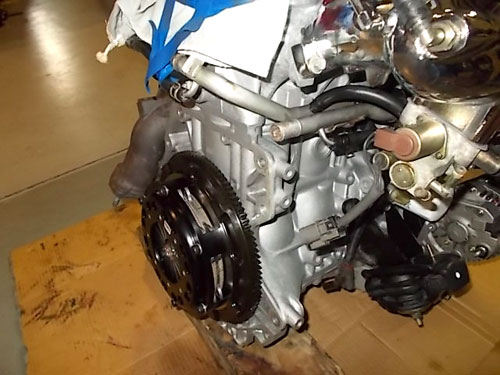

Another view of the clutch

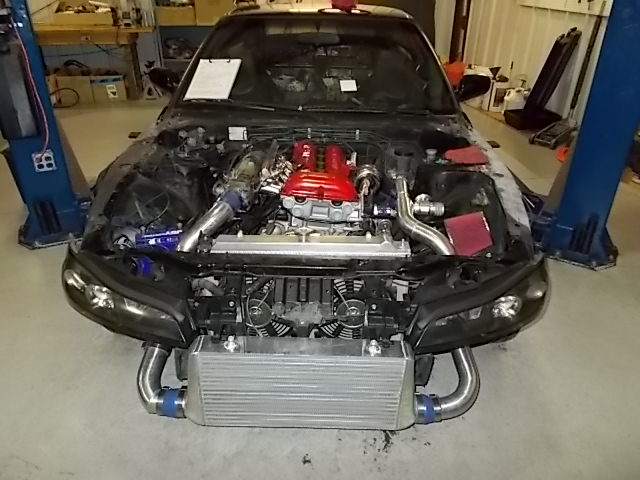

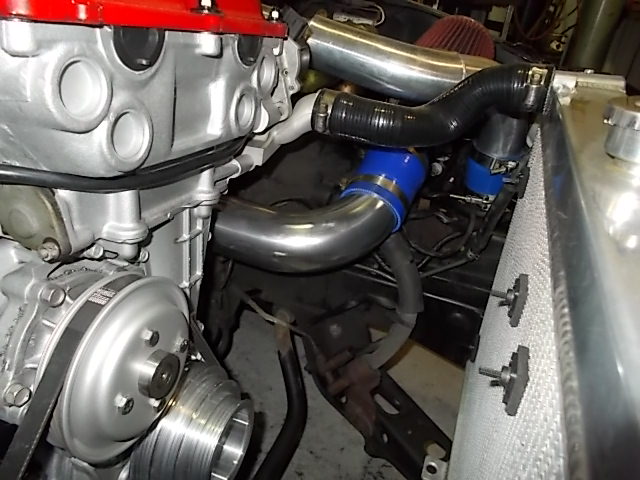

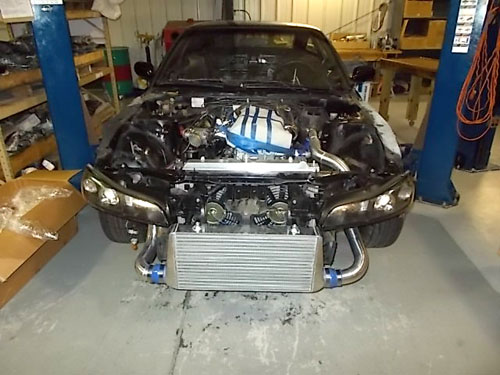

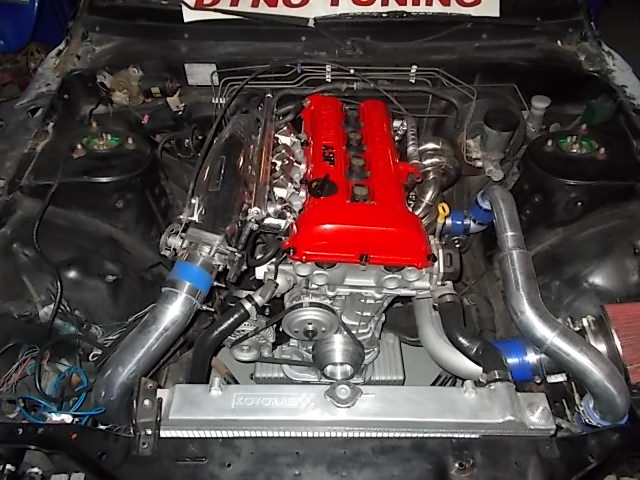

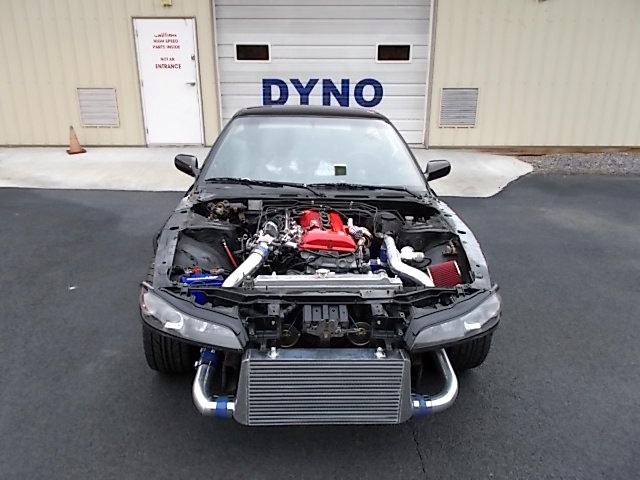

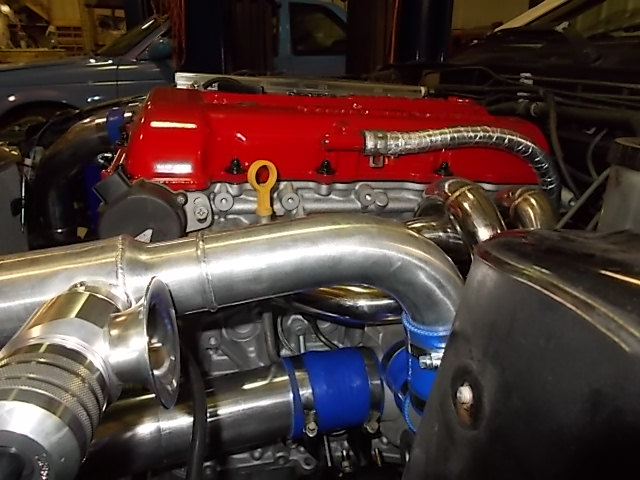

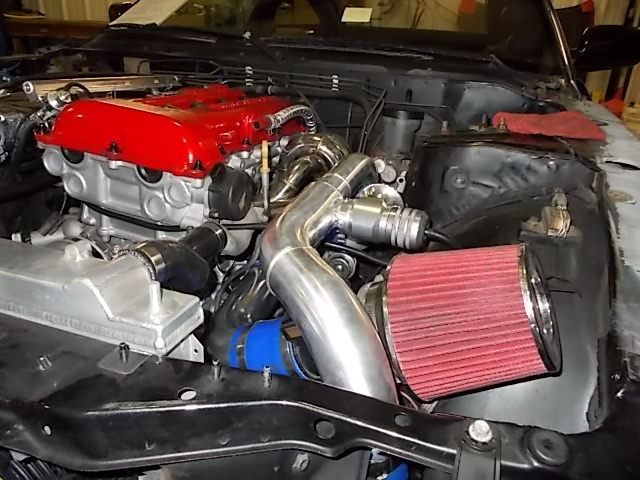

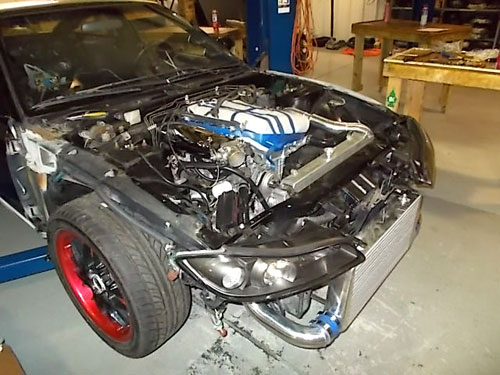

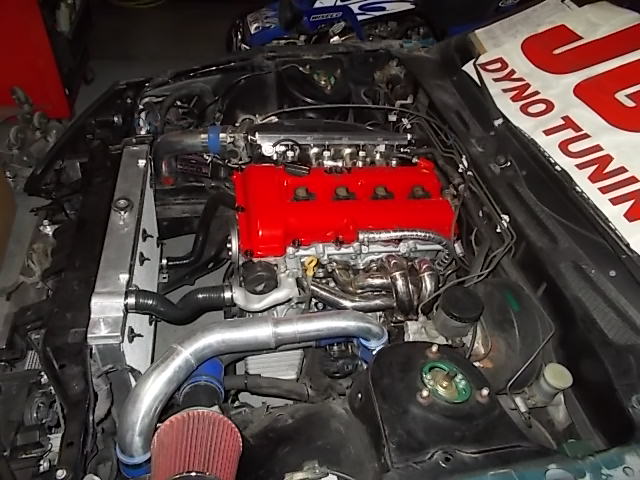

The motor is in and the intercooler kit's on

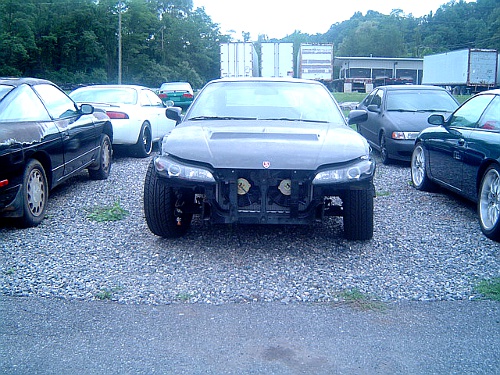

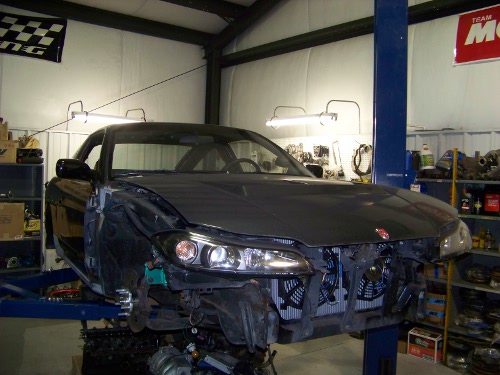

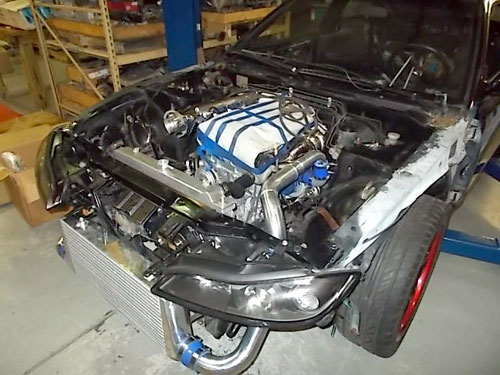

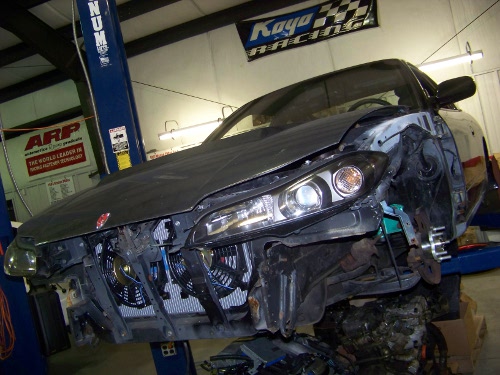

S15 front end

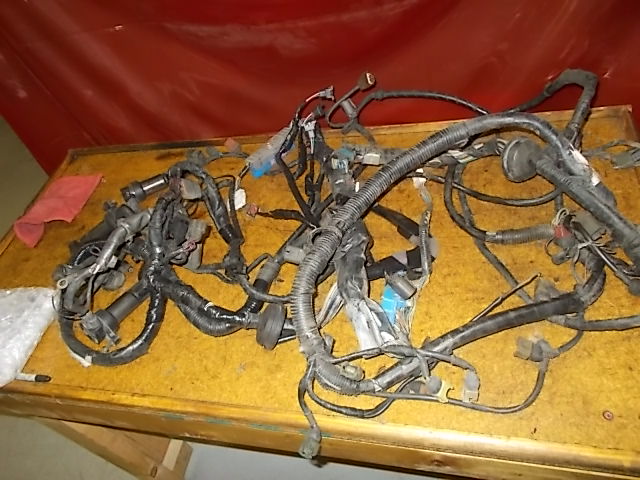

Harness work

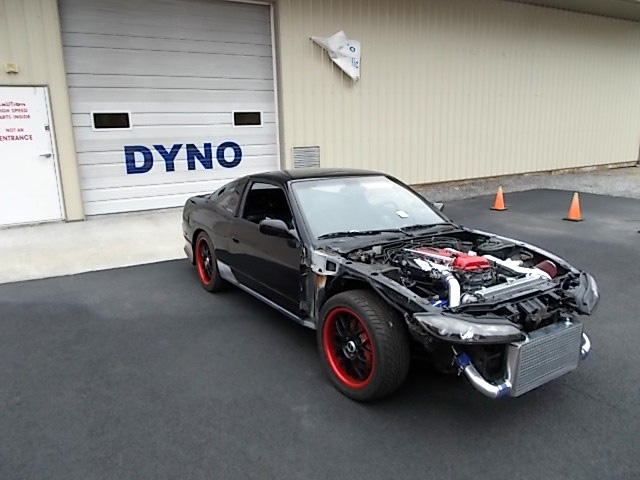

Finished install, time for dyno numbers

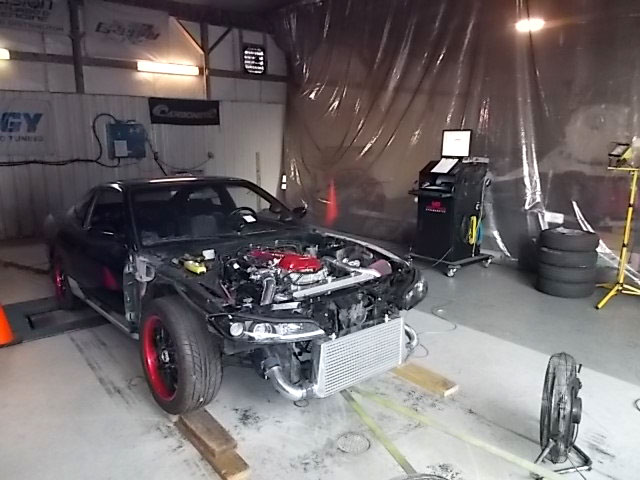

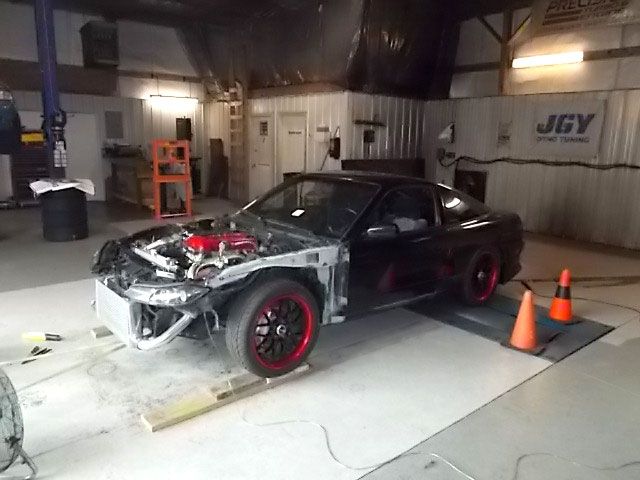

Ryan's car getting dyno'd

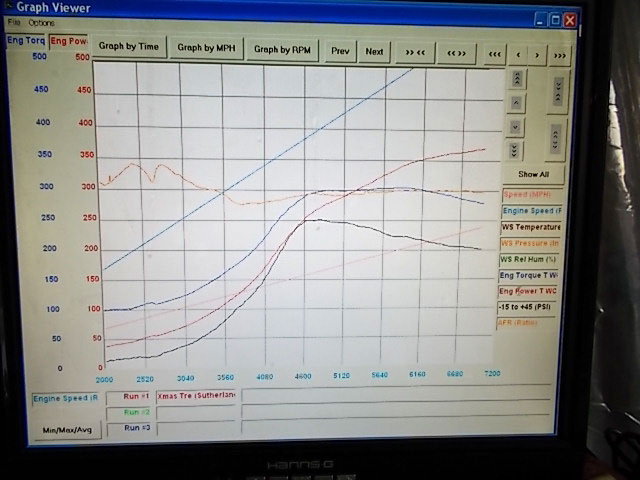

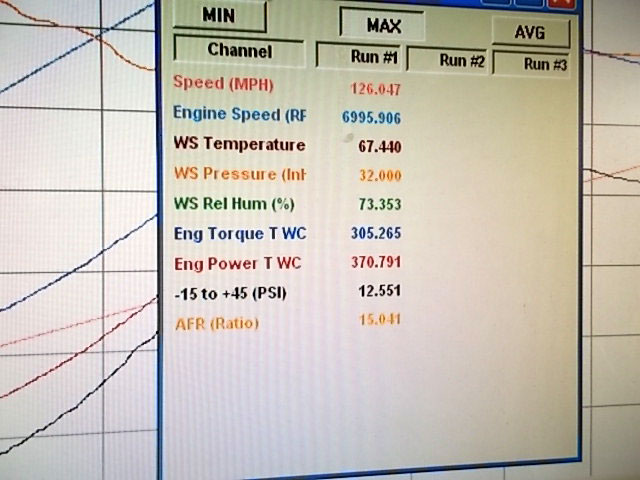

Before tuning. At the beginning, we got 370HP and 305tq at 9.x psi. (chart shows 12, but that is the peak, at the 370HP mark and RPM level, he was 9.x psi)

After the initial breaking the motor in, we tweaked the JWT program and set the correct fuel pressure, this motor kept making more power each pull.

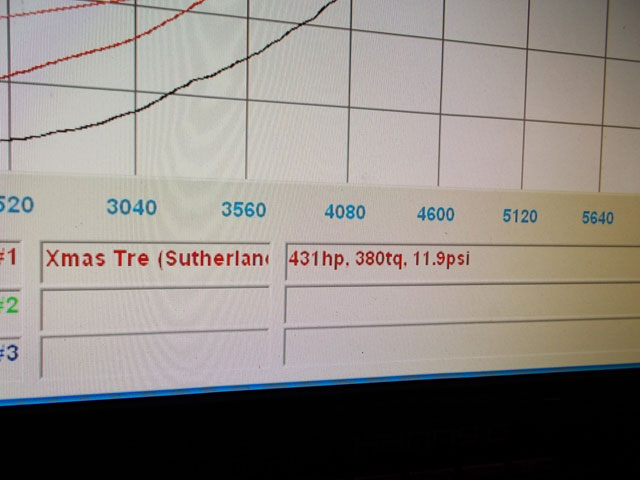

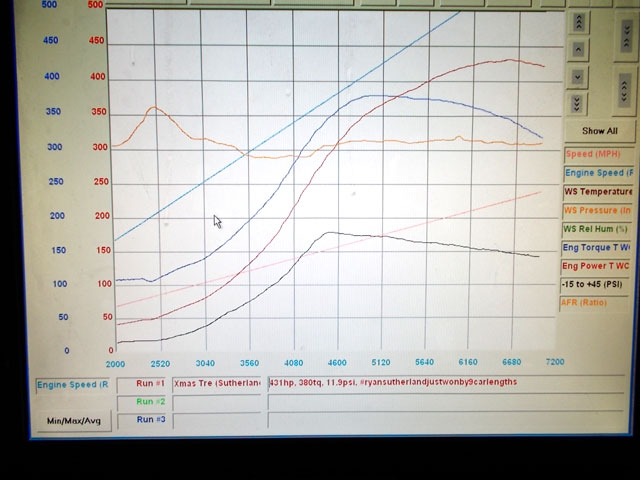

We netted 431HP and 380tq at a staggering 11.9psi. This motor was built with care and love and apparently LOVES power.

Ryan brought his lady friend with him to pick up the car, Miss Red

Ryan taking his baby home

Later, Ryan called us and said that the 240sx was the fastest car that he has ever been in and was extremely impressed with the job and service.
